IR-1200

IDIS Ready to Install with IDIS VMS Enterprise Server
/ NDAA Compliant
  • Pre-installed with IDIS Solution Suite VMS
  • Tested and validated with IDIS Solution Suite up to 256 Full HD H.264/H.265 IP cameras
  • Supports up to 256 Full HD cameras in real-time for enterprise-level surveillance systems
  • 1,024Mbps (128MBps) maximum recording bandwidth per server
  • Redundancy of power for mission-critical reliability
  • Complete compatibility with IDIS components: IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders
  • Equipped with RAID 5, RAID 6 recording, Hot swappable
  • Supports H.264, H.265 compression, and Intelligent Codec
  • Supports Onvif Profile S, Axis, Panasonic, etc.
General
Operating SystemMicrosoft® Embedded Windows Server 2022 IoT Std
ProcessorIntel® Xeon® Processor silver 4410Y 2G, 12C/24T
Memory16GB RAM (1 x 16GB DDR5-4800MT/s RDIMM)
Recording
Max. ThroughputUp to 1024Mbps (128MBps)
Mechanical

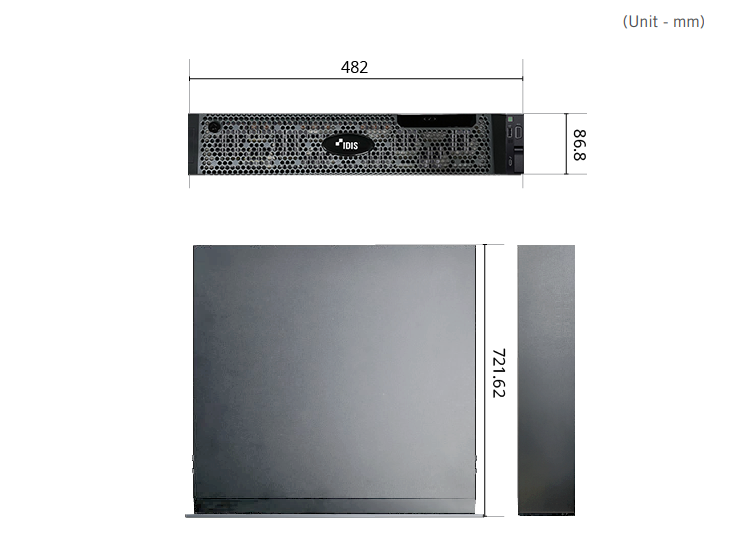

Unit Dimensions (W x H x D)482.0mm x 86.8mm x 721.62mm (18.97" x 3.41" x 28.4")
Unit WeightMax 28.6kg (63.0 lbs)
Electrical
Power Input100-240V AC, 50/60Hz
Environmental
Operating Temperature10° to 35°C (50° to 95°F)
Operating Humidity0% ~ 80%
Installation environment Accessory configuration
