| General |
| Explosion Proof rate | Ex db IIC T6 Gb
Ex tD A21 T80℃ |
| Operating Temperature | -40℃ ~ 55℃ |
| Power Source | PoE (48V dc) |
| Power Consumption | ≤10.6W |
| Materials | Stainless Steel 316L |

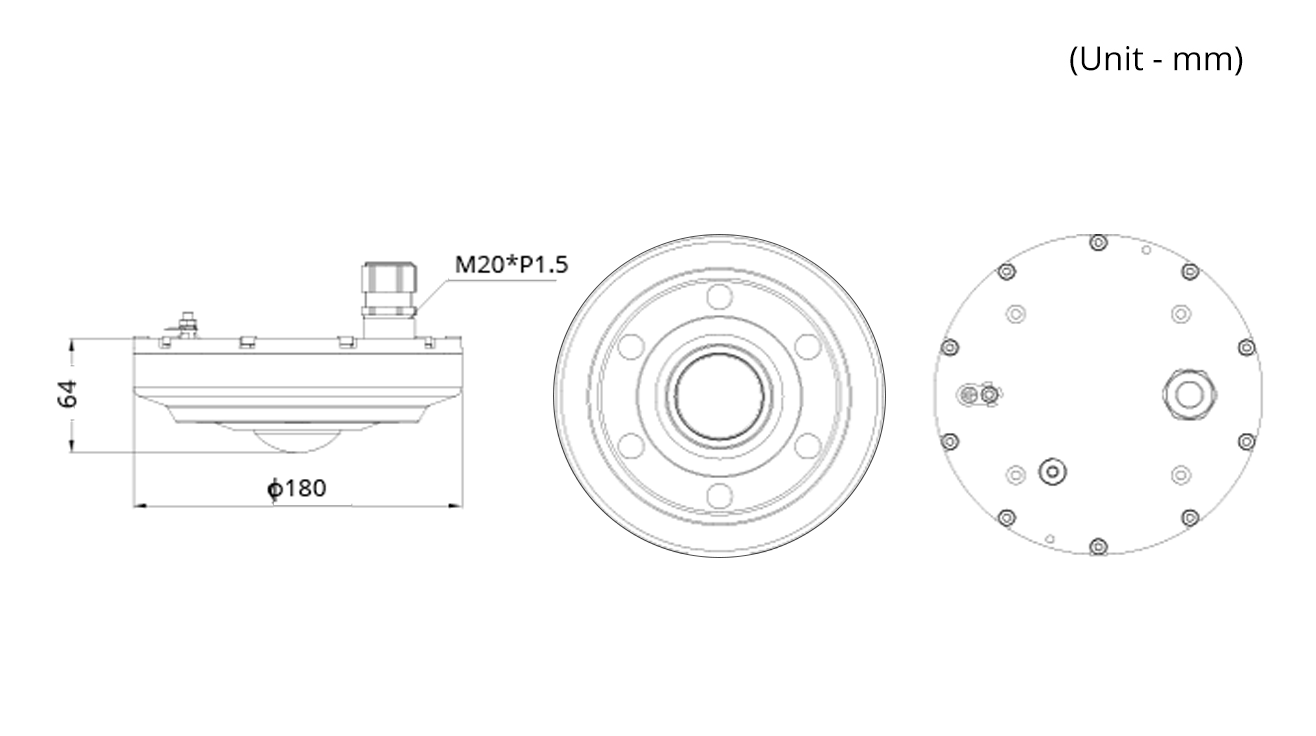

| Dimensions | Ø180 x 64mm |
| Weight | 3.7 Kg |
| Outdoor Ready | IP68 |
| Camera |
| Image Sensor | 1/2.3”Progressive Sony CMOS |
| Resolution | 12.47MP, 2944(H)X2944(V) |
| Electronic Shutter Speed | Auto/Manual(1/30~/10,000sec)
Slow Shutter(1~1/5,1/7.5,1/15) Anti-Flicker |
| Angular Field of View | 180°(H), 180°(V), 180°(D) |
| Lens Type | Fixed-focal (f=1.6mm) |
| Digital Zoom | 12x |
| Min. Illumination | COLOR : 0.1 Lux @ F2.0
B/W : 0 Lux (IR LED ON) |
| Dynamic Range | 120 dB (True WDR) |
| VR Mode | 360° VR Mode, Option Mode, Spot Mode, Drag and Drop |
| IR |
| IR Distance | 30M |
| LED | 4EA |
| IR Operation | Auto On/Off (Photo Sensor) |
| Network |
| Ethernet | RJ-45(10/100/1000Base-T) |
| Video Compression | H.265 / H.264(MP) / M-JPEG |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips: 2944 x 2944 |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
6MP
True WDR
PoE
ONVIF
