DP-DD1316

Reliability

Powerful Performance

Easy Installation

Scalability

NDAA Compliant

Video
Video Inputs	16 IP Channels
Max. Resolution	Up to 12MP (Depending on IP Camera)
Supported Device	IDIS IP Camera
Video Outputs	1 HDMI, 1 VGA, 1 CVBS
Display Resolution	HDMI : 3840x2160, 1920x1200, 1920x1080, 1680x1050, 1600x1200 VGA : 1920x1200, 1920x1080, 1680x1050, 1600x1200 CVBS : 720x480(NTSC) , 720x576(PAL)
Display Speed	Up to 480ips
Network
Video Compression	H.265, H.264
Max. Incoming Throughput	90Mbps
Ethernet	Gigabit Ethernet x1
Environmental
Operating Temperature	0°C ~ +40°C (32℉ ~ 104℉)
Operating Humidity	0% ~ 90%
Electrical
Power Source	12VDC, PoE
Power Consumption	12V=, 1.4A, 16.8W PoE, IEEE 802.3at(Class 4)
Approval	FCC, CE, KC
Mechanical

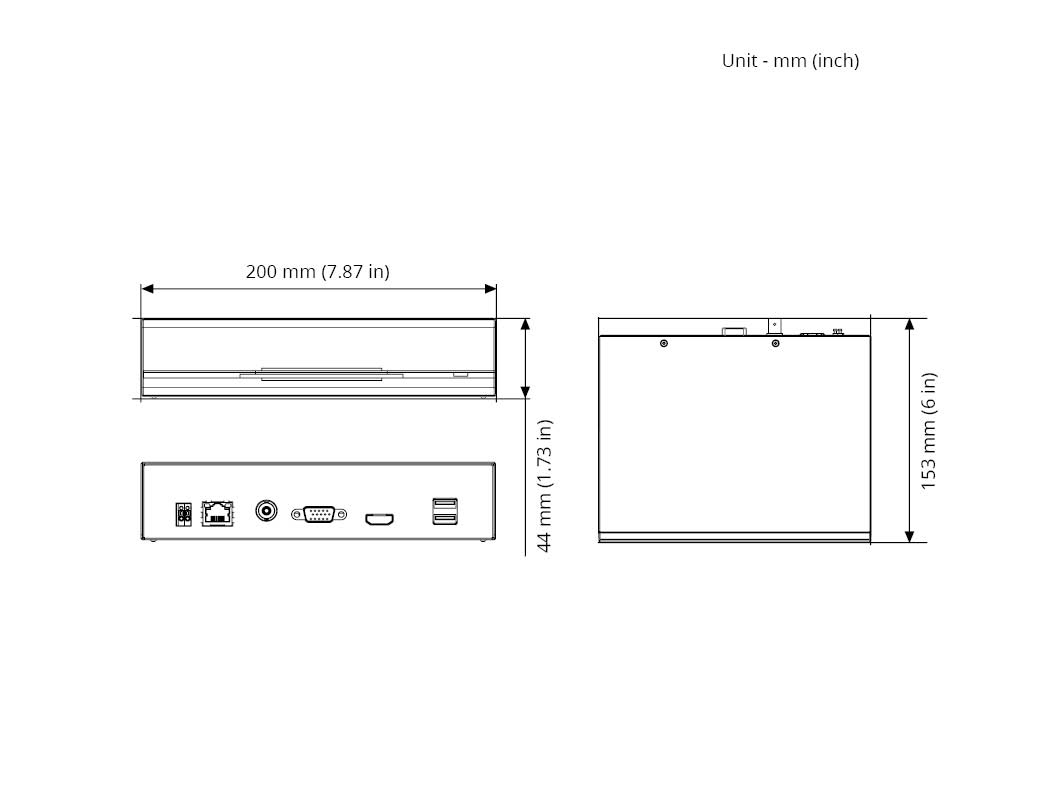

Dimensions	200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Weight	0.78kg (1.72lb)

Installation environment

Accessory configuration

Manual DP-DD1316 Manual v8.7
Software DP-DD1316 Firmware v8.7.0_JAPAN
Software DP-DD1316 Firmware v8.7.0
Brochure DP-DD1316 \| \|Automatically Generate Brochure
