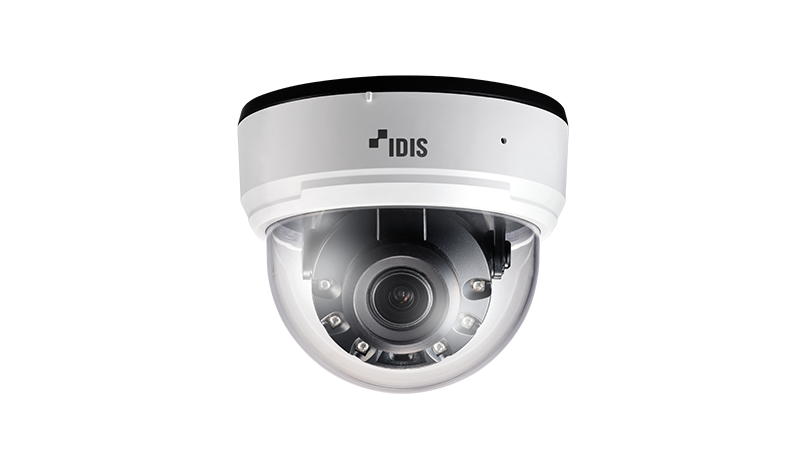

H.265 5MP AI IR Dome Camera
Artificial Intelligence
5MP
Motorized focus Lens
IR LED
True WDR
AI Embedded
IR Cut Filter Removable
Easy Installation
Two-way audio
PoE
NDAA & TAA Compliant
TAACompliant
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D) [16:9 mode] Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection Basic: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960, 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1A, 12W PoE, IEEE 802.3af(Class 3), 9.5W |
| Approval | FCC, CE, KC |
| Mechanical | |

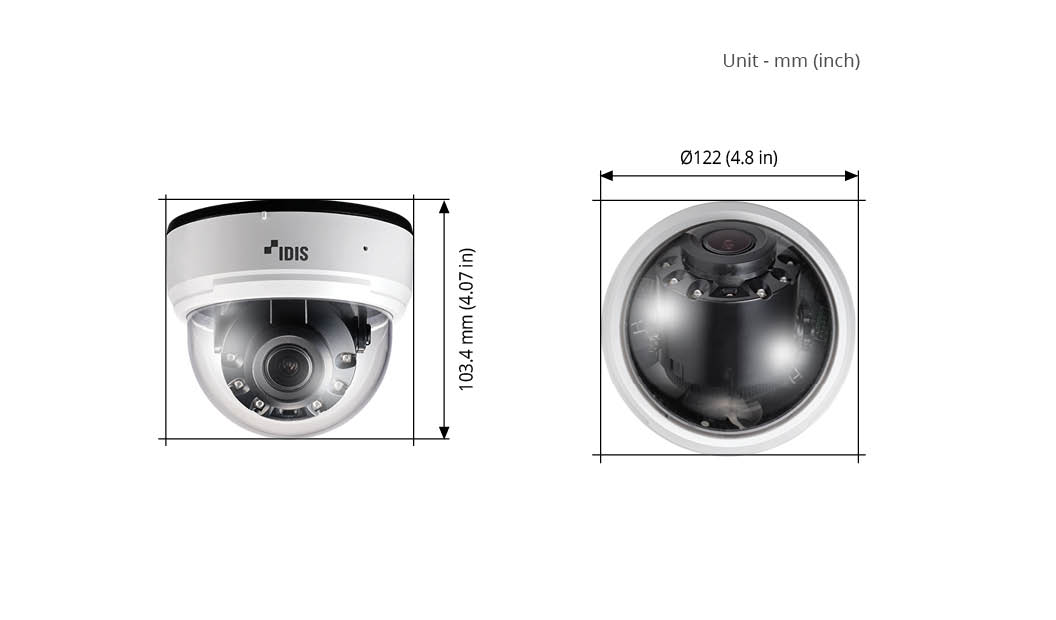

| Dimensions | Ø122 x 103.4mm(Ø4.8” x 4.07”) |
| Weight | 0.35kg (0.77lb) |
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Ceiling mount and pendant adapter combination for overhead installation.
Corner mount adapter combination for structure edges and corners.
Pole mount adapter combination for vertical cylindrical or square poles.
Adapter combinations for special and custom installation environments.
