Video
Image Sensor	1/2.8
Max. Resolution	2592 x 1944
Scanning Mode	Progressive Scan
Lens Type	Fixed-focal
Focal Length	f=2.8mm
Aperture	F2.0
Iris Control	Fixed Iris
Angular Field of View	104.8º (H) 76.9º(V) 130º(D)
Pan/Tilt/Rotate Range	Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109°
Min. Illumination	COLOR : 0.15 lux @ F2.0 B/W : 0 lux (IR LED ON)
Dynamic Range	120dB(True WDR)
Electronic Shutter Speed	Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night	IR cut filter with auto switch
IR Distance (LEDs)	30m / 98.4 ft (4ea)
Image Setting	Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation	On / Off
Image Stabilizer	-
De-fog	-
Privacy Masking	8 Zones
Intelligent Video	Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out	-
Network
Video Compression	H.265, H.264 (MP) M-JPEG
Intelligent Codec	Supported
Bitrate Control	H.265 - CBR / VBR, H.264 - CBR / VBR
Audio Compression	ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio	Yes
IP Camera Protocol	DirectIP 2.0, ONVIF Profile S
Max. Frame Rate	4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR)
Supports Resolution	4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video Streaming	Quadruple Streaming
Network Protocols	DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security	SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption
Remote Access Client	DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet	RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)	Yes (Up to 60MB)
Edge Storage	micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
ALARM AND EVENT
Trigger Event	Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification	Remote S/W, Email (with Image)
Pre-recorderd Voice Alert - IDIS protoco	On / Off
Audio In/ Out	1 / 1
Alarm In / Out	1 / 1
Environmental
Vandal Proof Casing	IK10
Outdoor Ready	IP67
Operating Temperature	-30°C ~ 55°C (-22°F ~ 131°F), Starting up at above 0°C (32°F)
Operating Humidity	0% ~ 90%
Electrical
Power Source	PoE (IEEE 802.3af Class 3)
Power Consumption	PoE, (IEEE 802.3af Class 3), 7.6W
Approval	FCC, CE, KC
Mechanical

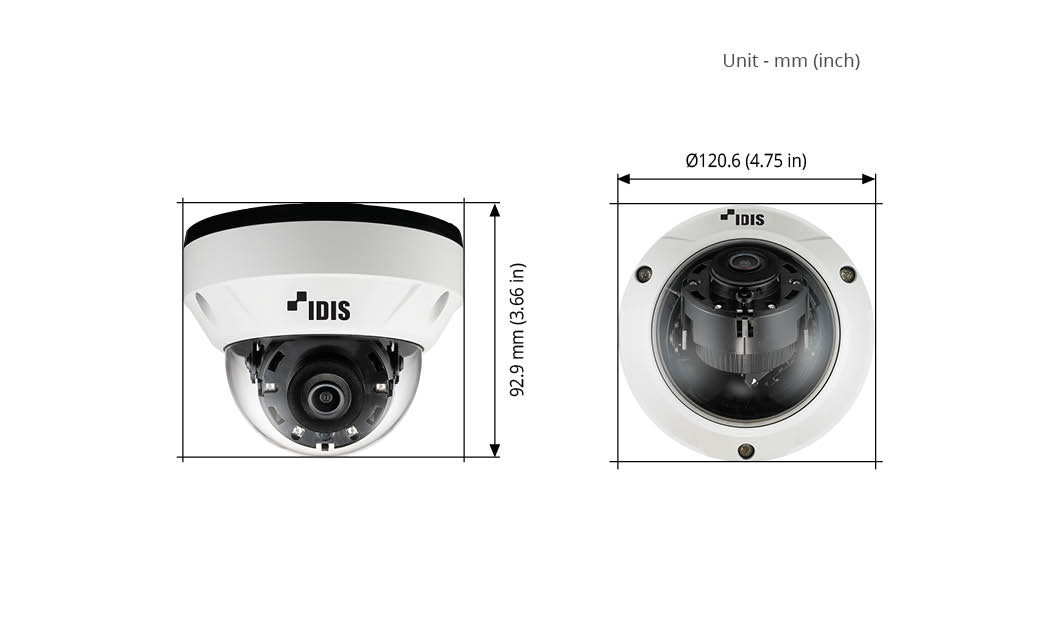

Dimensions (Ø x H)	Ø120.6 x 92.9mm
Weight	0.48kg(1.06lb)

Installation environment	Accessory configuration
Wall	JUNCTION BOX Model:DA-JB4700 or MOUNT ADAPTER Model:DA-MA4300 + WALL MOUNT Model:DA-WM2050
Celling	JUNCTION BOX Model:DA-JB4700 or MOUNT ADAPTER Model:DA-MA4300 + CEILING MOUNT Model:DA-CM2050
Pole	MOUNT ADAPTER Model:DA-MA4300 + WALL MOUNT Model:DA-WM2050 + Pole Mount Model:DA-LM2000 or JUNCTION BOX Model:DA-JB4700 + Pole Mount Model:DA-LM2000 or JUNCTION BOX Model:DA-JB4600 + Pole Mount Model:DA-LM2000
Corner	MOUNT ADAPTER Model: DA-MA4300 + WALL MOUNT Model: DA-WM2050 + Corner Mount Model: DA-RM2000 or JUNCTION BOX Model: DA-JB4700 + Corner Mount Model: DA-RM2000 or JUNCTION BOX Model: DA-JB4600 + Corner Mount Model: DA-RM2000

Manual DC-D4516WRX(A) Quick Guide
Manual DC-D4516WRX(A) Operation Manual
Manual DC-D4516WRX(A) Installation Manual
Software DC-D4516WRX(A) Firmware v2.2.0_JAPAN
Software DC-D4516WRX(A) Firmware v2.2.0
A&E Specification DC-D4516WRX A&E Specification v1.0
Software DC-D4516 series Firmware v1.0.1c (Control4 compatible firmware)
Brochure DC-D4516WRX 2.8mm \| \|Automatically Generate Brochure

DC-D4516WRX 2.8mm

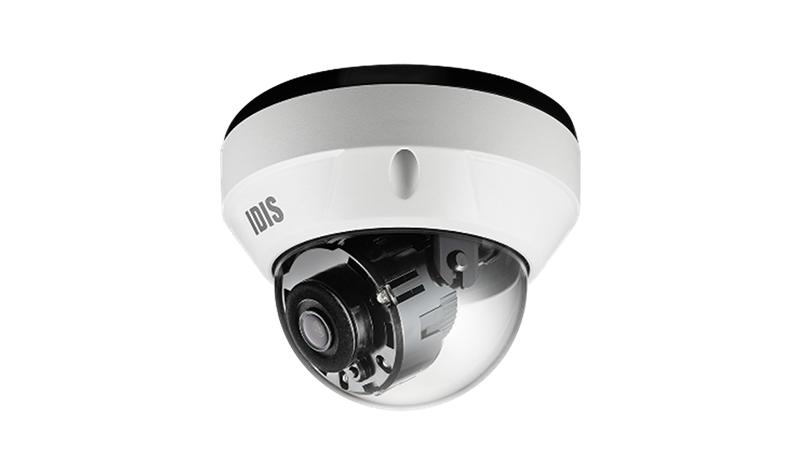

5MP Vandal-Resistant IR Dome Camera / NDAA Compliant

5MP Vandal-Resistant IR Dome Camera
/ NDAA Compliant
