| Video |
| Image Sensor | 1/1.8 |
| Max. Resolution | 3328 x 1872 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | f=6.5 - 202mm |
| Aperture | F1.55 - 4.8 |
| Iris Control | DC Auto Iris (HALL SENSOR) |
| Angular Field of View | Wide : 62.14°(H), 37.04°(V), 69.44°(D) Tele : 2.37°(H), 1.33°(V), 2.7°(D) |
| Min. Illumination | Color : 0.1 lux @ F1.55 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 200 m /656.2ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Auto Tracking | Yes |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate |
| Pan Range | 360° (Endless) |
| Pan Speed | Pan: 0.02~180°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | Tilt: 0.02~180°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 3328 x 1872(WDR) |
| Supported Resolution | 3328 x 1872 (6MP), 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | - |
| Alarm In / Out | 8/2 |
| Environmental |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, Heater |
| Operating Temperature | -40°C ~ 60°C *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | 24VAC, PoE (75W) |
| Power Consumption | HEATER OFF
24V~, 2.1A, 38.2W, 50/60Hz
High-PoE, 50-57V, 29.7W
HEATER ON
24V~, 3.7A, 68.58W, 50/60Hz
High-PoE, 50-57V, 58.6W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical - Brand |

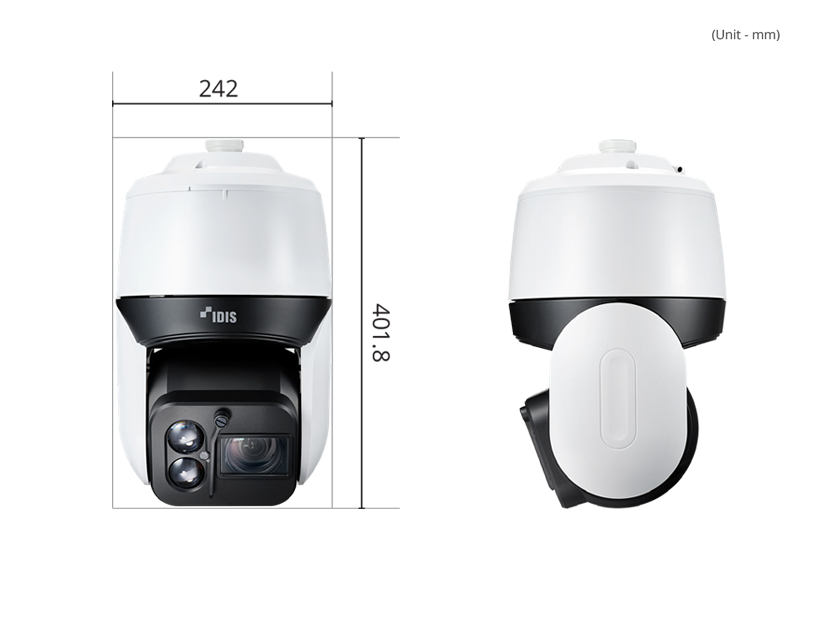

| Dimensions (Ø x H) | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 7.3kg (16.09 lb) |
6MP
Zoom Lens
Heater
IR LED
True WDR
Easy Installation
IP66
PoE
IR Cut Filter Removable
Electronic Image Stabilization
ONVIF
NDAA Compliant
