| SYSTEM |
| IDIS Solution Suite | Compatible with Expert and Federation Version 2.8.2 or Higher |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Recording Data Rate | Up to 400Mbps |
| Number of Cameras | 64Ch Recommanded |
| Hard Disk Drive Configuration | 8 SATA 3 eSATA
RAID 1, 5, 10 Supported |
| SSD | 240G SSD for Operating System (M.2 type) |
| Operating System | Microsoft® Windows 10 Iot Enterprise |
| Processor | Intel® I5-10500, 3.1GHz |
| Memory | DDR4 PC-21300, 8GB |
| Video Outputs | 2 HDMI |
| USB | 6 ( 2 Front USB 2.0 4 Back ( 3 USB 3.0 TYPE-A 1 TYPE-C) |
| RS-232 | - |
| Optical Drive | - |
| MECHANICAL |
| Form Factor | 2U RACK Mount Chassis |

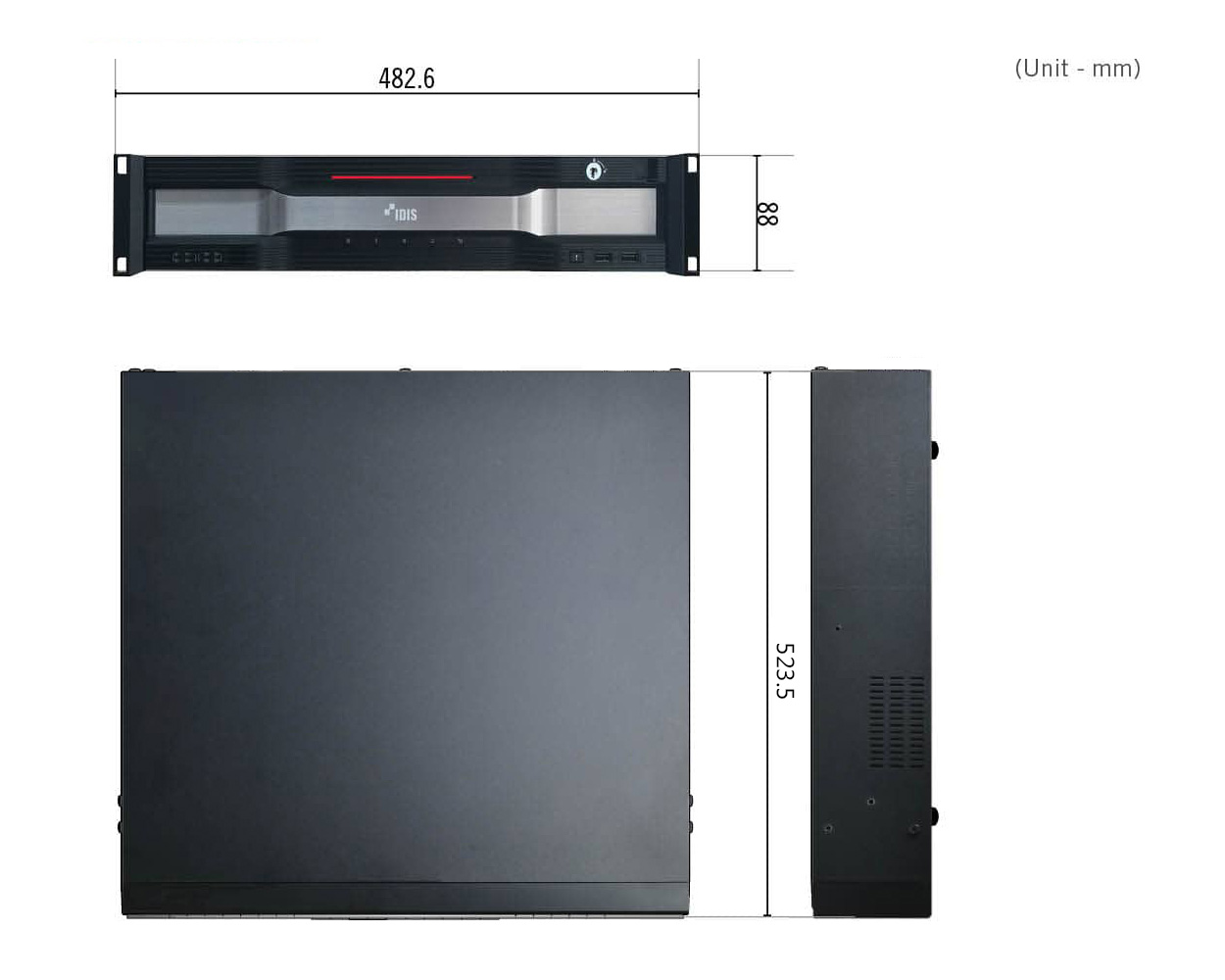

| Unit Dimension (W x H x D) | 482.6mm x 88mm x 523.5mm (19" x 3.5" x 20.6") |
| Weight | 27.8 lbs. (12.6kg) |
| ELECTRICAL |
| Power Input | 100-240V~, 50/60 Hz, 6.0 - 3.0A |
| Power Supply | Single Power |
| Power Consumption | 190W |
| Label | 100-240V~, 50/60Hz, 6.0-3.0A, 190W |
| ENVIRONMENTAL |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% to 90% |
| ACCESSORIES SUPPLIED |
| Power Cord | 1 |
| General |
| Certifications | FCC, CE, CB, UL, PSE, KC |
Intelligent Codec
ONVIF
[VMS] IDIS Solution Suite
Extensible Interface
Easy Installation
Compatibility
NDAA Compliant
