Alarm Box
| Interface | |
| Alarm Input | 8 Digital-Input - Dry contact, Wet contact High : Open or DC 5V ~ DC 30V Low : Short or DC 0V ~ DC 1.8V |
| Alarm Output | 4 Relay-out - NC, NO, COMMON |
| Power Output | 12VDC(300mA), 5VDC(400mA) |
| Ethernet | 10/100Mbps |
| DirectIP Supported | Yes |
| USB | Yes(Spare) |
| General | |

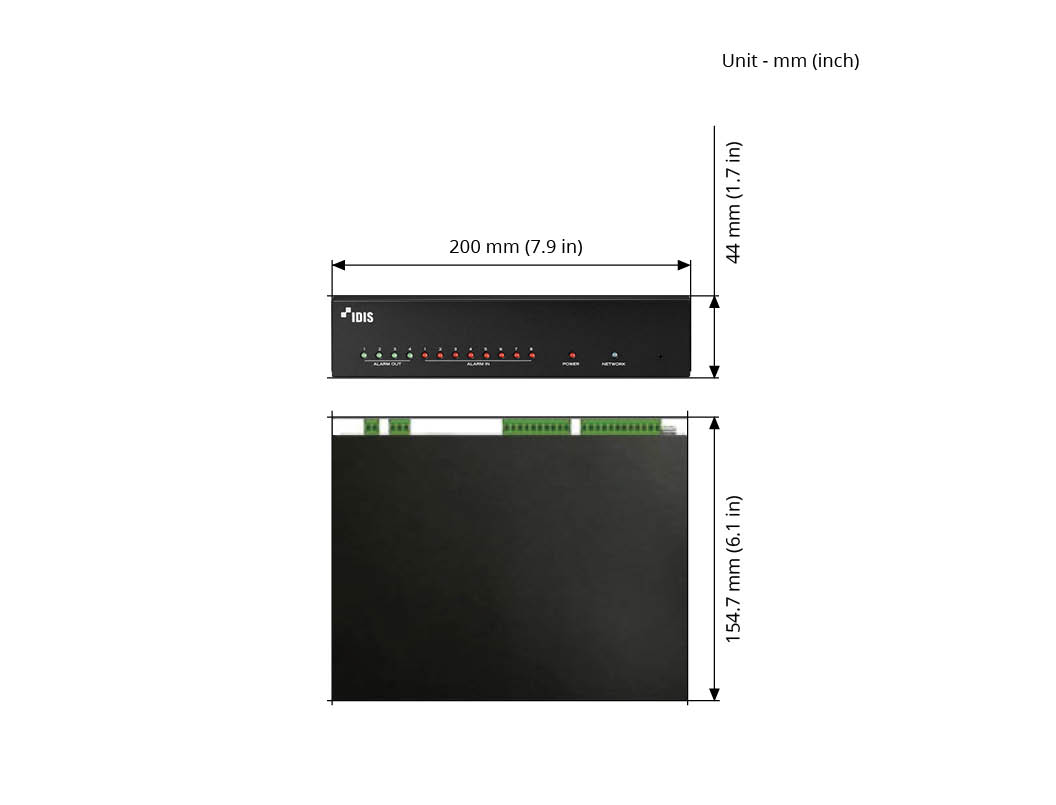

| Dimension (W x H x D) | 200mm x 44mm x 154.7mm (7.9” x 1.7” x 6.1”) |
| Unit Weight | 0.77kg (1.7lb) |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F) |
| PoE(class) | Yes(IEEE 802.3at Class 4) |
| Power source | 12VDC, 24VAC, PoE |
| Power Consumption | 20W |
| Approvals | FCC, CE, KC |
