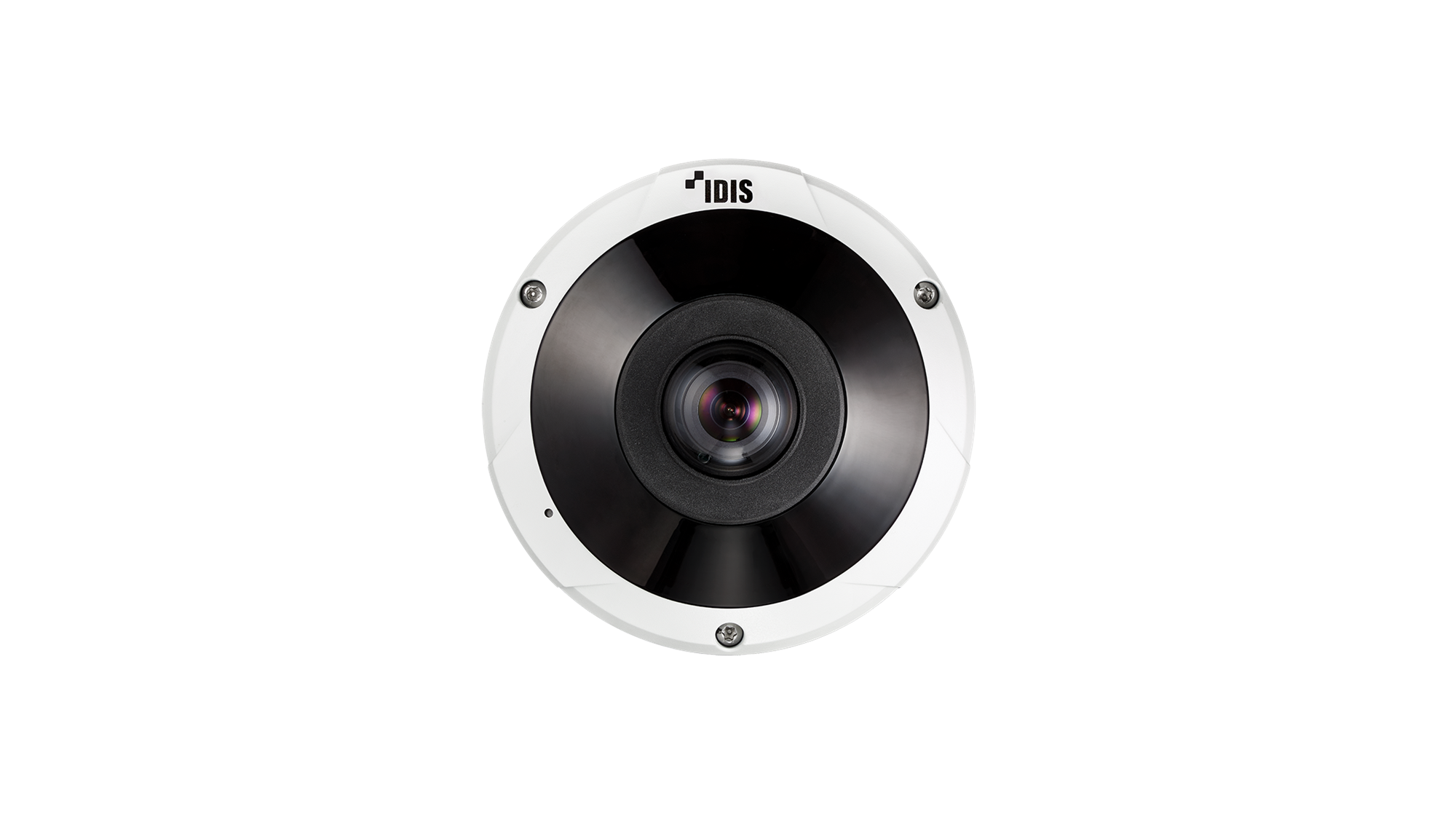

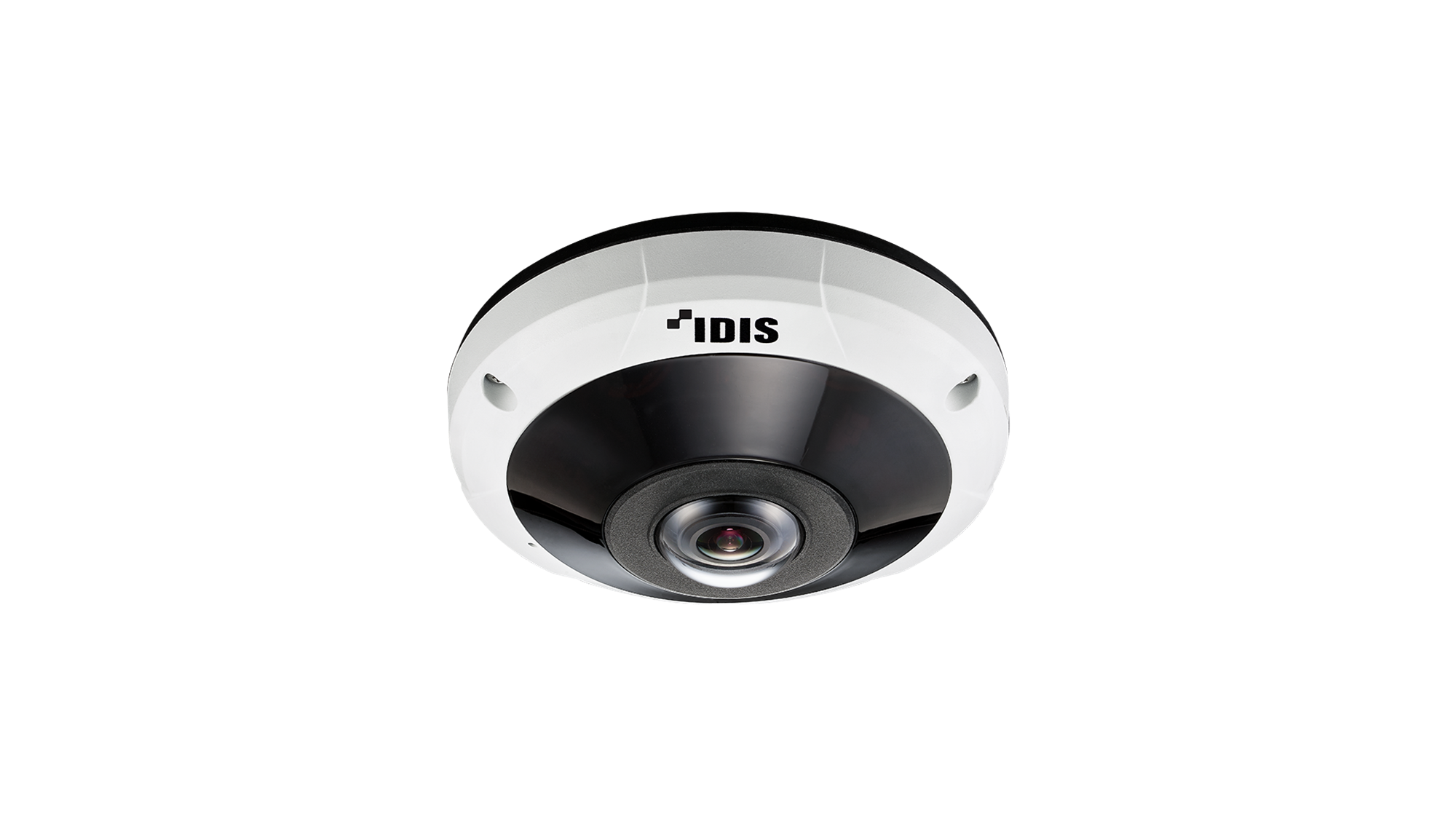

DC-Y6C16WRX / DC-Y6C16WRX-A

12MP Vandal-Resistant IR Fisheye Camera
/ NDAA Compliant
  • 12MP Sensor / 8.6MP (2944 x 2944) resolution
  • Fixed-focal lens (f=1.6mm)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio(DC-Y6C16WRX only), Alarm in / out
  • IK10 / IP67 supports
  • IR LED (15m / 49.2ft (4ea))
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Various viewing composition, 6 dewarping view modes
  • Easy installation with DirectIP NVR
Video
Image Sensor1/2.3" 12MP CMOS
Max. Resolution2944 x 2944
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=1.6mm
ApertureF2.0
Iris ControlFixed Iris
Angular Field of View180°(H), 180°(V), 180°(D)
Pan/Tilt/Zoom-
Min. IlluminationColor : 0.3 lux @ F2.0
B/W : 0 lux (IR LED ON)
Dynamic Range120 dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)15m / 49.2ft (4ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Image Stabilizer-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap
Viewing Composition1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out -
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecSupported
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes(DC-Y6C16WRX only)
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate30ips : 2944 X 2944
15ips : 2944 x 2944 (WDR)
Supports Resolution2944x2944, 2208x2208, 2944x1472, 1472x1472, 768x768, 736x736, 768x384
Multi-video StreamingQuadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x
IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection(DC-Y6C16WRX only), Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1(Built In MIC)+1 / 1(DC-Y6C16WRX only)
Alarm In / Out1/1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-30°C ~ 50°C (22°F ~ 122°F) / *Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption12V=, 0.94A, 11.3W
PoE, IEEE 802.3af(Class 3), 10.6W
ApprovalFCC, CE, KC
Mechanical

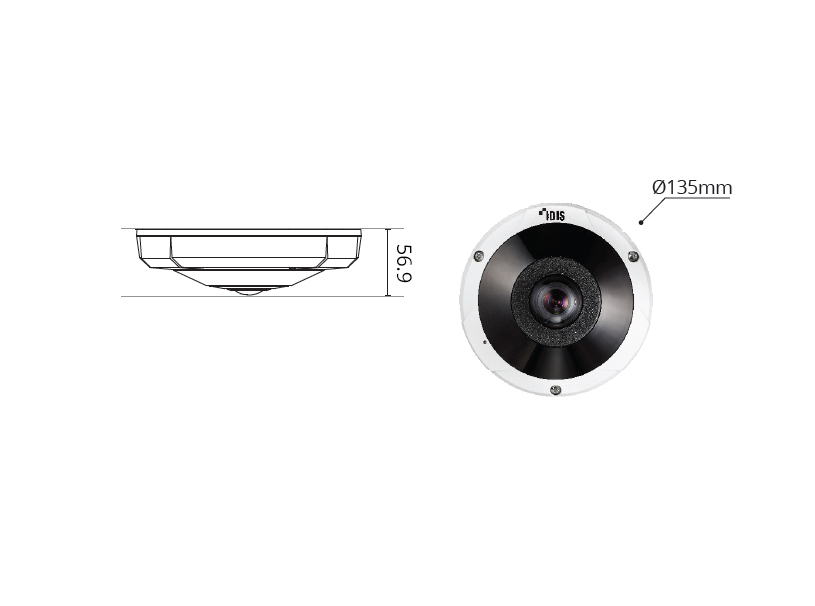

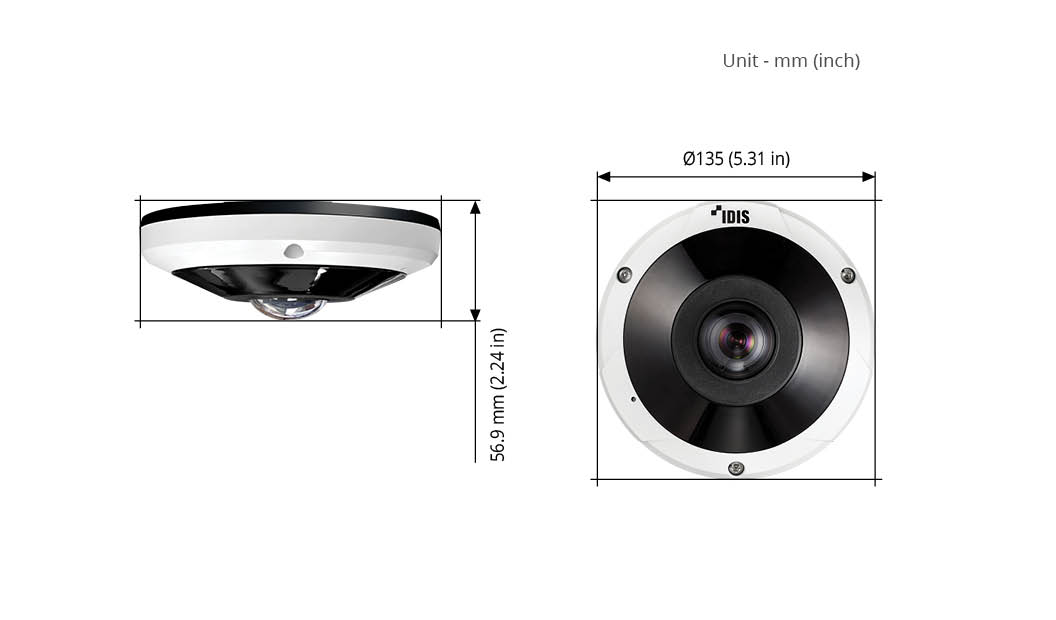

Dimensions (Ø x H)Ø135 x 56.9mm(Ø5.31" x 2.24")
Weight0.67kg(1.47 lb)
Installation environment Accessory configuration
