DA-ES1104D

4-Bay eSATA Storage
/ NDAA Compliant
  • 19 inch rack-mount
  • Supports RAID Levels 0, 1+ 0, 5
  • SATA to SATA Port Multiplier
  • Maximum of 3.0Gbps transfer rate (SATA II)
  • Installation of the maximum of four hard disk drives
  • Maximised space saving and capacity relative to the cost
  • Easy expansibility to a very large storage pool
  • Compatible to IR-300A with 10TB HDD
  • Supported Device: IR-300A, IR-310(-A)(D)(D-A)
Function
InterfaceeSATA x1
HDDSATA x 4
HDD Size3.5"
RAIDRAID 1, 5, 10 Supported
Total Capacity48TB=12TB x4
Supported DeviceIR-300A, IR-310(-A)(D)(D-A)
Environmental
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Electrical
Power Input100V ~ 240VAC, 0.6-0.3A, 50/60Hz
Power Consumption100-240V~, 50/60Hz, 0.6-0.3A, 40W
ApprovalFCC, CE, KC
Mechanical

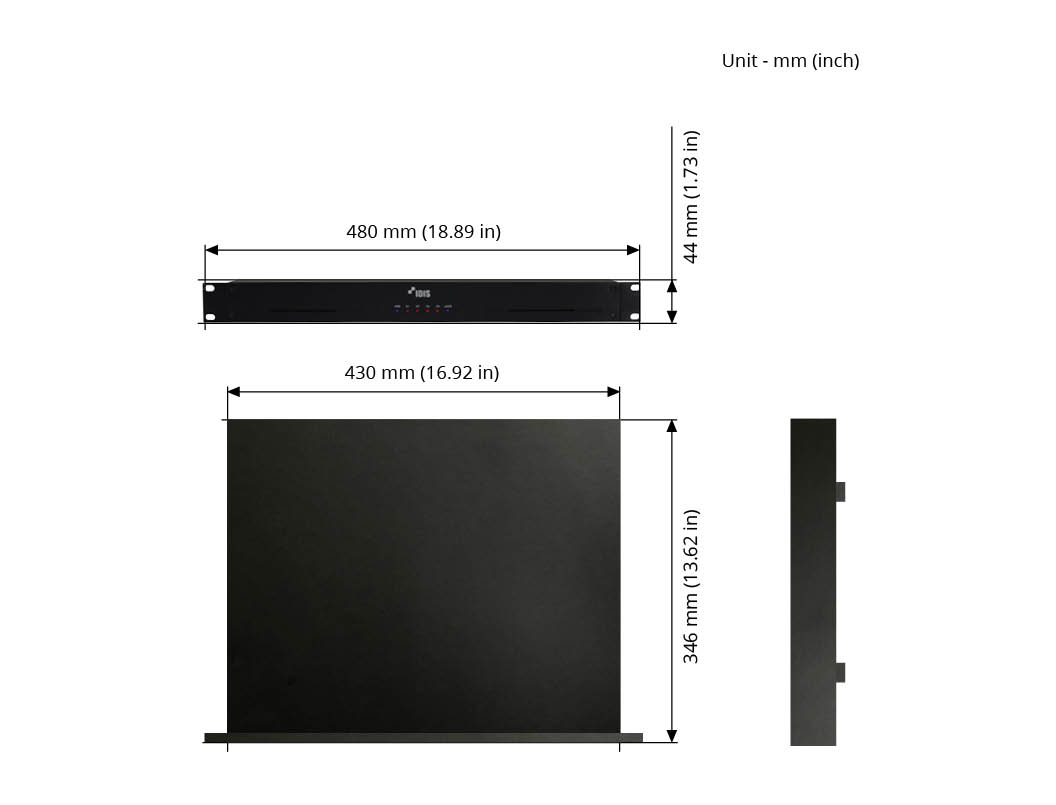

Dimensions (W x H x D)480mm x 44mm x 346mm (18.9" x 1.7" x 13.6")
Weight6.4kg (14.11lb)
Installation environment Accessory configuration
A&E Specification DA-ES1104D A&E Specification v1.4 Download
Manual DA-ES1104 eSATA Storage Manual v1.0 Download
Brochure 4 Bay eSATA Storage (2) Download
Brochure DA-ES1104D | |Automatically Generate Brochure
