| Video |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | f=4.3 - 129mm |
| Aperture | F1.6 - 5.0 |
| Iris Control | DC Auto Iris (HALL SENSOR) |
| Angular Field of View | Wide : 64.7°(H), 38.6°(V), 72.7°(D)
Tele : 2.3°(H), 1.4°(V), 2.6°(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6
B/W : 0.01 lux @ F1.6 |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1~1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Auto Tracking | Yes |
| Video Out | - |
| Pan/Tilt/Rotate |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 420°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~180°/sec (preset 420°/sec) |
| Preset | 256ea |
| Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP, ONVIF Profile S |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security | Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT |
| Trigger Event | Motion Detection, Face Detection, Alarm in, Tampering |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea / Line-out 1ea |
| Alarm In / Out | Input 4ea / Output 2ea |
| Environmental |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +60°C (+14°F ~ +140°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | 24VAC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | Max 10.6W |
| Power Consumption | 24VAC : Max 12.0W
PoE : Max 10.8W |
| Approval | FCC, CE(50130-4), KC, UL |
| Mechanical |

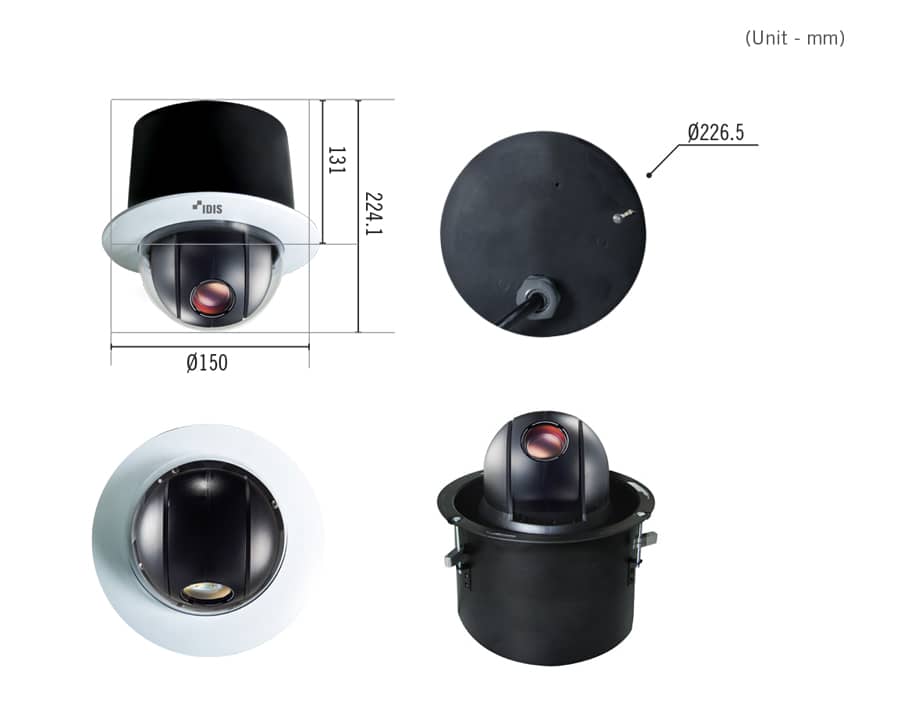

| Dimensions (Ø x H) | Ø226.5mm x 224.1mm (Ø8.92" x 8.83") |
| Weight | 2.2 kg (4.86 lb) |
2MP
Zoom Lens
True WDR
Easy Installation
Two-way audio
PoE
IR Cut Filter Removable
ONVIF
