2MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
IR Cut Filter Removable
ONVIF
NDAA Compliant
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=2.8mm |
| Aperture | F 2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6°(H), 61.45°(V), 127.3°(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Video Compression Level (Quality) | Basic, Standard, High, Very High |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Material | Metal |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 6.1W |
| Approval | FCC, CE, KC |
| Mechanical | |

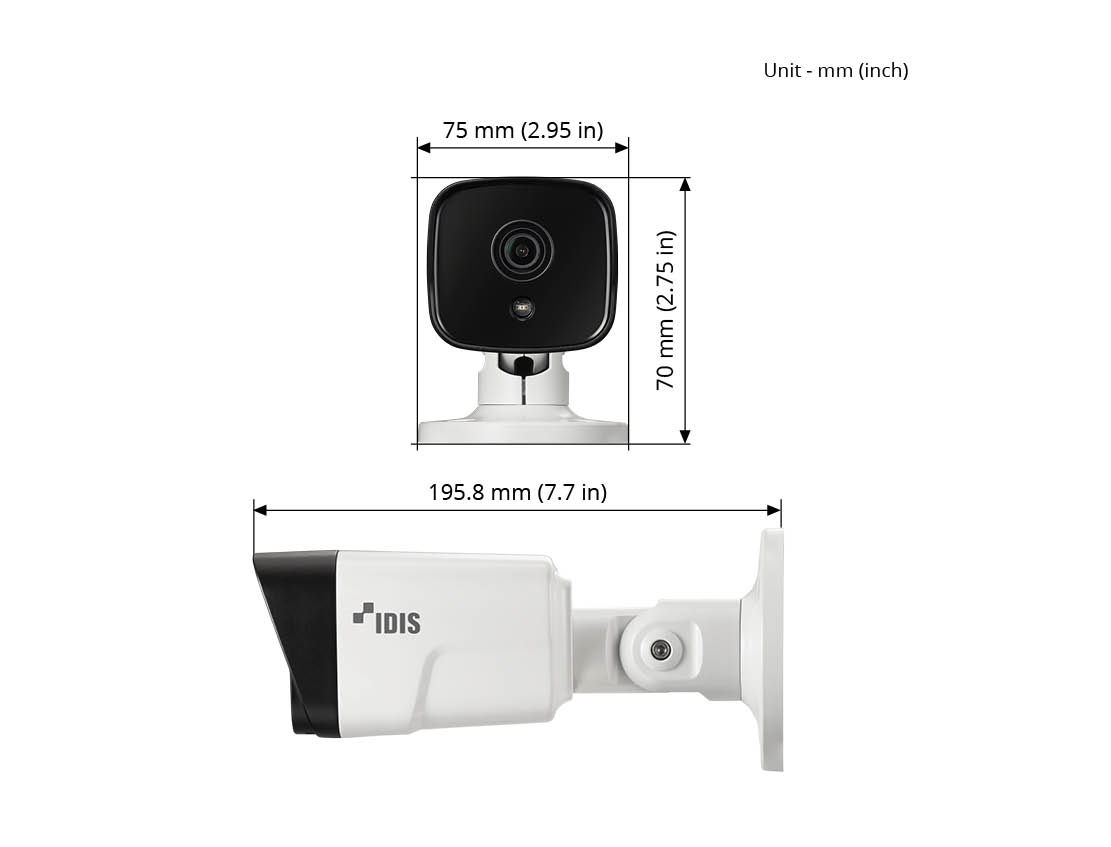

| Dimensions (W x H) | 75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.7") |
| Weight | 0.655 kg |
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model:DA-JB4150
or
Junction Box
Model:DA-JB2400
|
|
Celling |
Junction Box
Model:DA-JB4150
or
Junction Box
Model:DA-JB2400
|
|
Pole |
Junction Box
Model:DA-JB4150
+
Pole Mount
Model:DA-LM2000
or
Pole Mount
Model:DA-LM2000
+
Junction Box
Model:DA-JB2400
|
|
Corner |
Corner Mount
Model: DA-RM2000
+
Junction Box
Model: DA-JB2400
or
Junction Box
Model: DA-JB4150
+
Corner Mount
Model: DA-RM2000
|
