| Video |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Frame Rate | TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
CVBS : NTSC / PAL(for previewing video) |
| Lens Type | Fixed-focal |
| Focal Length | 4.0mm |
| Aperture | F2.15 |
| Iris Control | Fixed Iris |
| Angular Field of View | 79.2º (H) 56.6º(V) 103º(D) |
| Min. Illumination | COLOR : 0.17 Lux @ F1.6
B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 50dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m / 65.6 ft (4ea) |
| Video Out | 1 HD BNC (Signal Switchable) |
| Function |
| Functions via OSD menu control | · AGC : 0 ~ 10 Level Adjustable
· Brightness : 0 ~ 20 Level Adjustable
· Sens-UP : OFF / x2 ~ x32
· WDR(Wide Dynamic Range) :
OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available
· Backlight Compensation(BLC) : OFF/ON
· HLC : 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY)
· ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH
· Motion Detection : OFF/ON (4 Zone)
· Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8
· Day & Night : Color/B&W/EXTERN
· Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable
· White Balance : AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)
· Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH
· Mirror : MIRROR, FLIP
· D-ZOOM(EZOOM) : x1 ~ x16
· Sharpness : 0~10 Level Adjustable
· De-fog : OFF/ON
· GAMMA Correction : r = 0.45 ~ 0.75
· Lens Shading(LSC) : OFF / ON(0 ~ 100% Level Adjustable)
· Language : ENG / CHN / CHN(S) / JPN / KOR |
| Environmental |
| Vandal Proof Casing | - |
| Outdoor Ready | IP66 |
| Operating Temperature | -10℃ ~ +55℃ (14℉ ~ +131℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | DC 12V |
| Power Consumption | 3.4W |
| Mechanical |

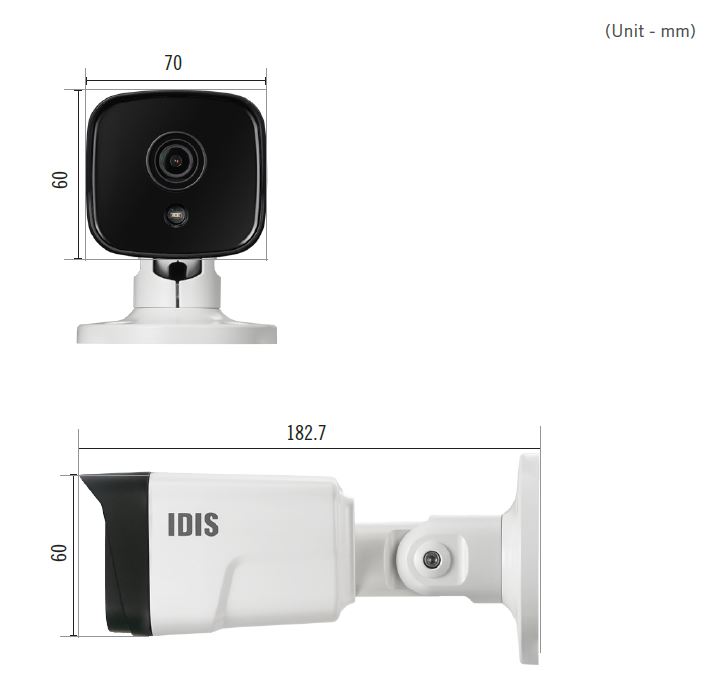

| Dimensions | 70mm x 65mm x 182.7mm (2.75" x 2.56" x 7.19") |
| Weight | 0.24kg (0.53lb) |
5MP
Fixed Lens
Weather Proof
IR LED
True WDR
IR Cut Filter Removable
IP66
ONVIF
