COLOR

DC-C4212RX

Full HD Micro Dome Camera
  • Adapted Interior Design
  • Intuitive 3-Axis Spherical Gimbal
  • 2,8mm Wide Angle
  • True wide dynamic range (WDR)
  • Non Bubble Anti-IR Reflection
  • PoE (IEEE 802.3af Class 1)
  • Day and night (ICR)
  • IR LED (15 m / 49.2 ft (1 ea))
  • Intelligent Video Analytics(Motion Detection, Trip Zone, Active Tampering)
Video
Image Sensor1/2.8" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=2.8mm
ApertureF2.0
Iris ControlFixed Iris
Angular Field of View113.74°(H), 61.5°(V), 134.5°(D)
Pan/Tilt/Rotate RangePan: -170° ~ 170°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90°
Min. IlluminationCOLOR : 0.1 lux @ F2.0
B/W : 0 lux (IR LED ON)
S/N RatioMore than 45dB
Dynamic Range120 dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)15 m / 49.2 ft (1 ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Image Stabilizer-
De-fogOn / Off
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG,
Intelligent CodecSupported
Video Compression Level (Quality)Basic, Standard, High, Very High
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression.
Two-way Audio-
IP Camera Protocol DirectIP v2.0, ONVIF
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supports Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
-Motion Adaptive Transmission (MAT)DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 10MB)
Edge Storage-
ALARM AND EVENT
Trigger EventMotion Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out-
Alarm In / Out-
Environmental
Vandal Proof Casing-
Outdoor Ready-
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 1)
Power ConsumptionPoE, IEEE 802.3af(Class 1), 3.3W
ApprovalFCC, CE, KC
Mechanical

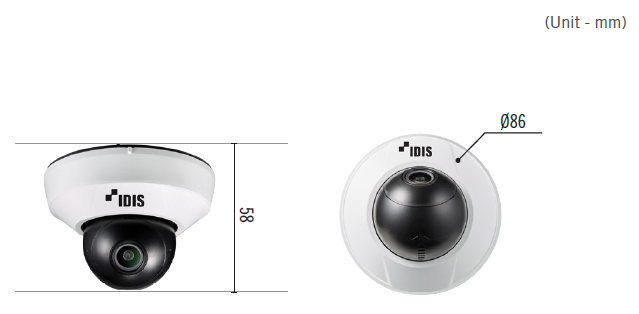

Dimensions (Ø x H)Ø86mm x 58mm (Ø3.39" x 2.28")
Weight105g (0.23lb)
Installation environment Accessory configuration

Wall

Wall Mount
Model:DA-WM4100
