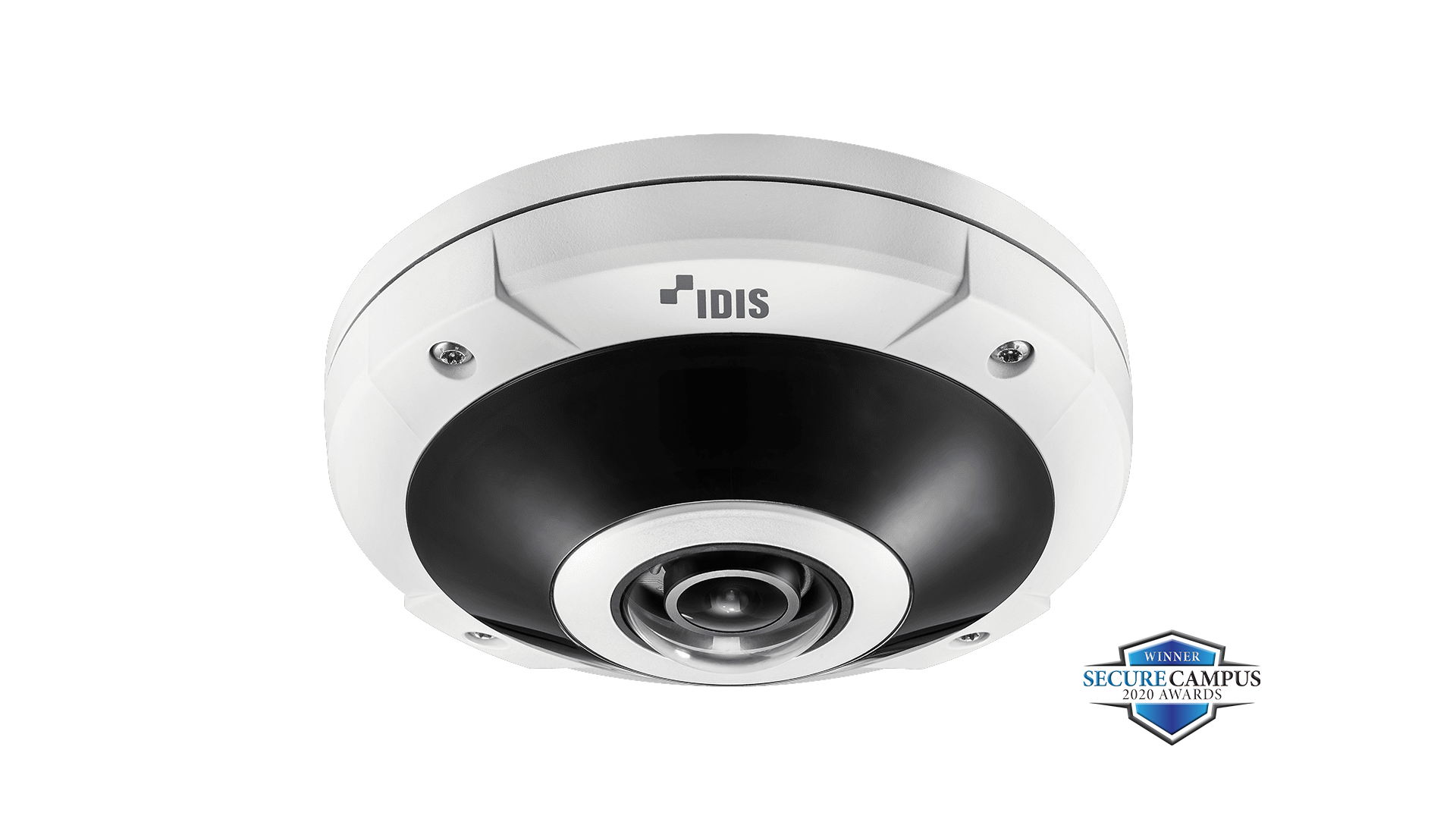

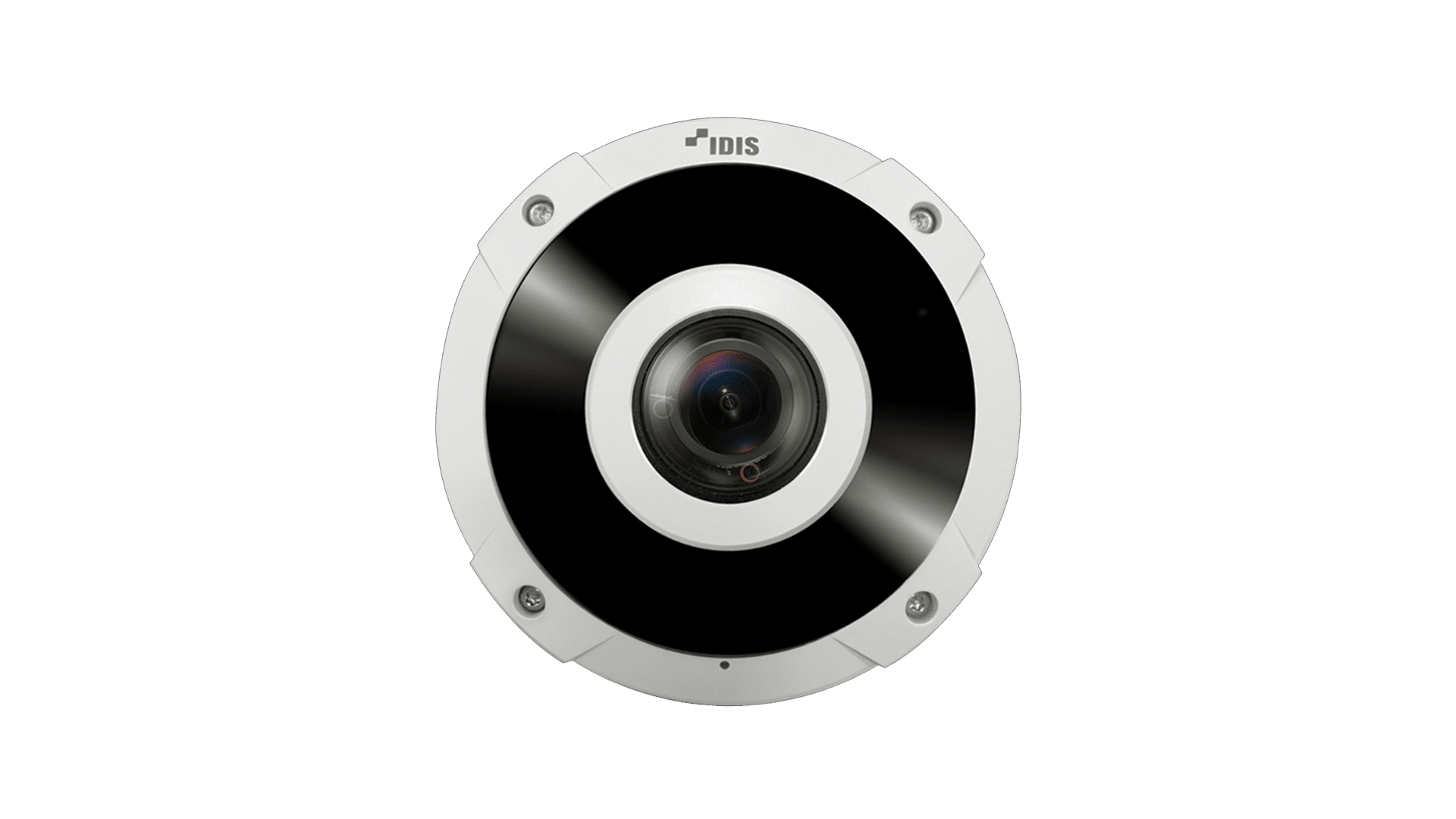

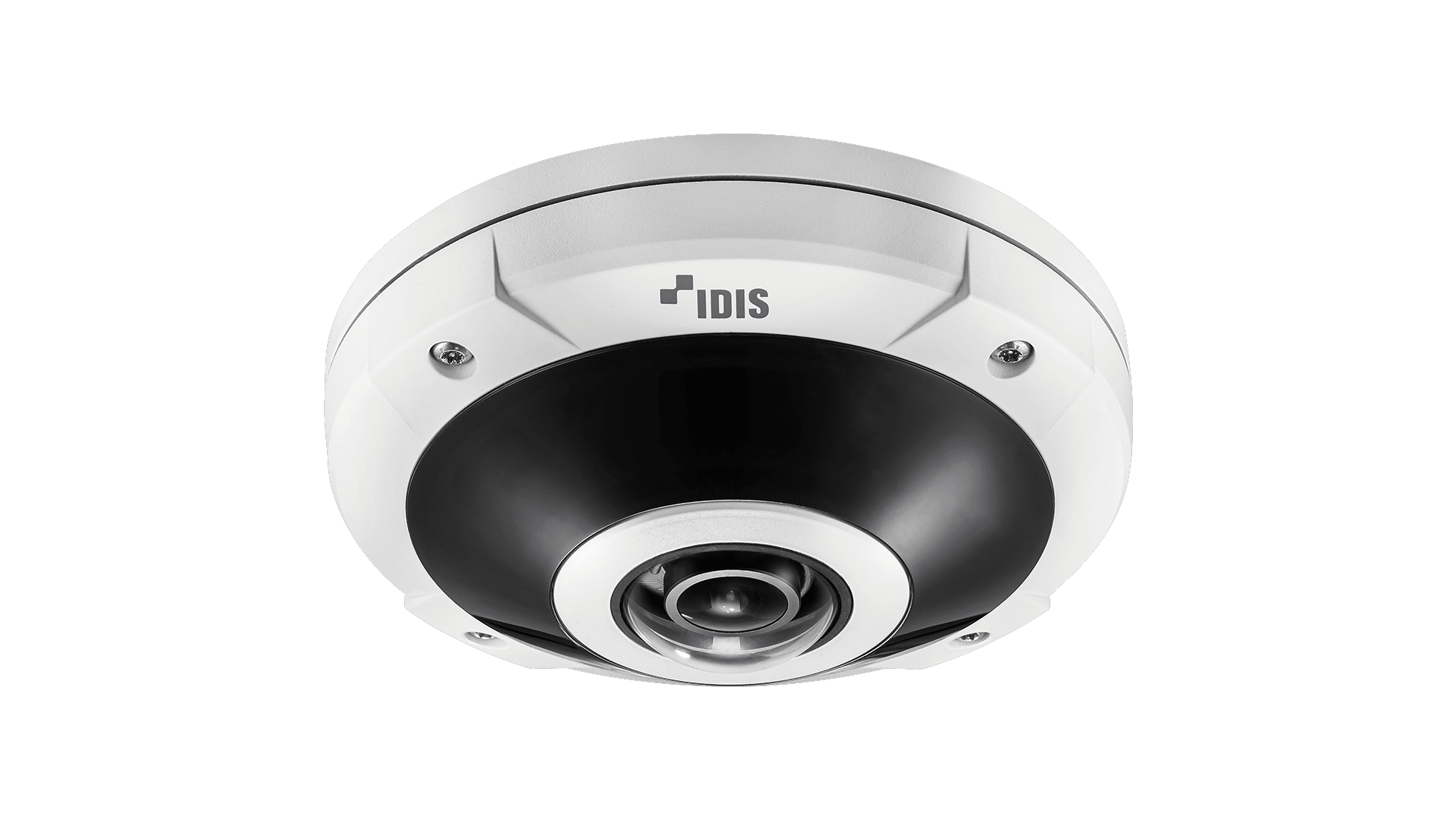

DC-Y8C13WRX

12MP Panomorph IR Fisheye Camera
  • Easy installation with DirectIP NVR
  • 12MP Sensor / 9.4MP (3200 x 2944) resolution
  • Fixed-focal lens (f=1.2mm)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (15m / 49.2ft (6ea))
  • Various viewing composition, 6 dewarping view modes
  • Supports ONVIF
Video
Image Sensor1/1.7
Max. Resolution3200 x 2944
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=1.2mm
ApertureF2.2
Iris ControlFixed Iris
Angular Field of View180°(H), 180°(V), 180°(D)
Pan/Tilt/Zoom-
Min. IlluminationColor : 0.2 lux @ F2.2

B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)15m / 49.2ft (6ea)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off / HSBLC
Image Stabilizer-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap
Viewing Composition1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out -
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecSupported
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S
Max. Frame Rate30ips : 3200 x 2944

15ips : 3200 x 2944 (WDR)
Supports Resolution3200x2944, 2400x2208, 3200x1472, 1600x1472, 800x736, 800x368
Multi-video StreamingQuadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x

IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100/1000BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1(Built In MIC) 1 / 1
Alarm In / Out1/2
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature -10°C ~ 60°C ( 14°F ~ 140°F)
*Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE IEEE 802.3af (Class 3)
Power Consumption12V=, 1A, 12W

PoE, IEEE 802.3af(Class 3), 12W
ApprovalFCC, CE, KC
Mechanical

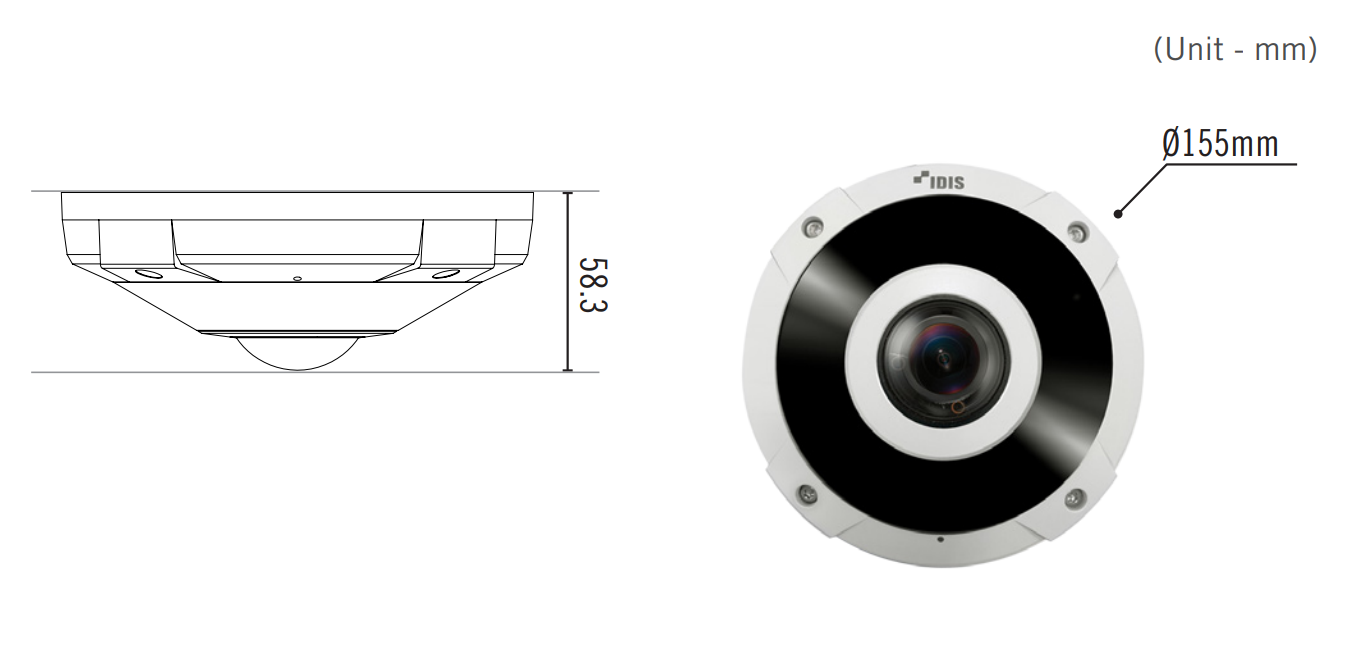

Dimensions (Ø x H)Ø155.0mm x 58.3mm (Ø6.10" x 2.29")
Weight0.840 kg (1.85 lb)
Installation environment Accessory configuration

Wall

DA-MA2100
Model:DA-MA2100

+

WALL MOUNT
Model:DA-WM2050

or

JUNCTION BOX
Model:DA-JB2200

or

Tilt Mount
Model:DA-TM1100

Celling

DA-MA2100
Model:DA-MA2100

+

CEILING MOUNT
Model:DA-CM2050

Pole

DA-MA2100
Model:DA-MA2100

+

WALL MOUNT
Model:DA-WM2050

+

Pole Mount
Model:DA-LM2000

or

JUNCTION BOX
Model:DA-JB2200

+

Pole Mount
Model:DA-LM2000

or

Tilt Mount
Model:DA-TM1100

+

Pole Mount
Model:DA-LM2000

Corner

DA-MA2100
Model: DA-MA2100

+

WALL MOUNT
Model: DA-WM2050

+

Corner Mount
Model: DA-RM2000

or

JUNCTION BOX
Model: DA-JB2200

+

Corner Mount
Model: DA-RM2000

or

Tilt Mount
Model: DA-TM1100

+

Corner Mount
Model: DA-RM2000
