| SYSTEM |
| IDIS Solution Suite | Compatible with Expert and Federation
Version 2.6.0 or Higher |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Recording Data Rate | Up to 352Mbps |
| Number of Cameras | 32Ch Recommanded |
| Hard Disk Drive Configuration | 5 SATA + 1 eSATA |
| Operating System | Microsoft® Windows Embedded Standard 8 |
| Processor | Intel® I7-7700, 3.6GHz |
| Memory | DDR4 PC-17000, 8GB |
| Video Outputs | 1 HDMI, 1 DP, 1 VGA |
| USB | 6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0) |
| RS-232 | 1 (DB9) |
| Optical Drive | 1 DVD-RW |
| MECHANICAL |
| Form Factor | 4U RACK Mount Chassis |

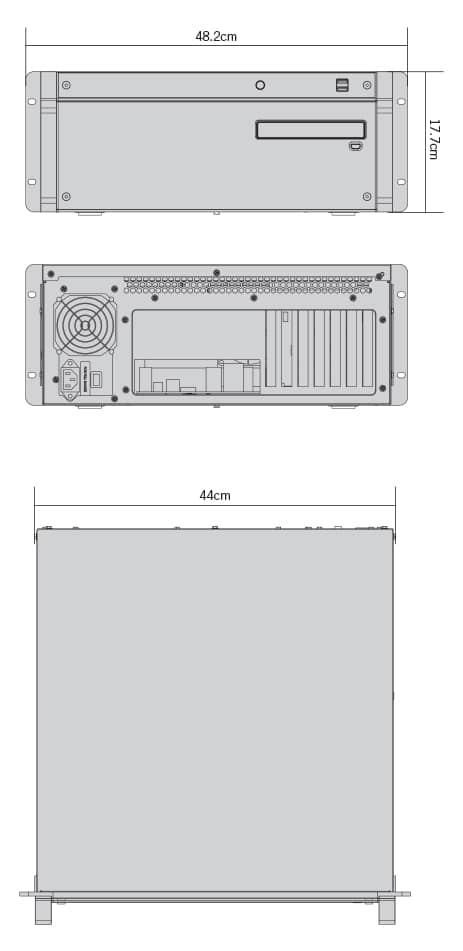

| Dimensions (W x D x H) | 440mm x 177mm x 462mm (17.3" x 7.0" x 18.2") |
| Weight | 15.3kg (33.7 lbs.) |
| ELECTRICAL |
| Power Input | AC 100-240 V, 50/60Hz, 2.0 - 1.0A |
| Power Supply | Singlel Power |
| Power Consumption | 90W |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Operating Humidity | 0% to 90% |
| ACCESSORIES SUPPLIED |
| Power Cord | 1 |
| General |
| Certifications | FCC, CE, CB, UL |
Intelligent Codec
ONVIF
[VMS] IDIS Solution Suite
Extensible Interface
Easy Installation
Compatibility
