DE-1108

DirectIP 8-channel Encoder
  • Supports PTZ with RS485 port
  • Supports 4 audio input ports
  • Supports quadruple stream
  • Supports 8 anlaog camera input ports
Encoder
Video CompressionH.264
Video Inputs8 BNC Composite
Max Video ResolutionD1 : 720x480 / 720x576 (NTSC/PAL)
960H : 960x480 / 960X576 (NTSC/PAL).
Frame Rate30ips@960H per channel
Multi Streaming VideoQuadruple Stream
Max.Network Throughput64Mbps
Audio In/Out4 RCA / -
PTZ SupportYes(RS485)
Trigger EventsMotion Detection ,Video Loss , Tampering
DirectIP SupportedYes
General

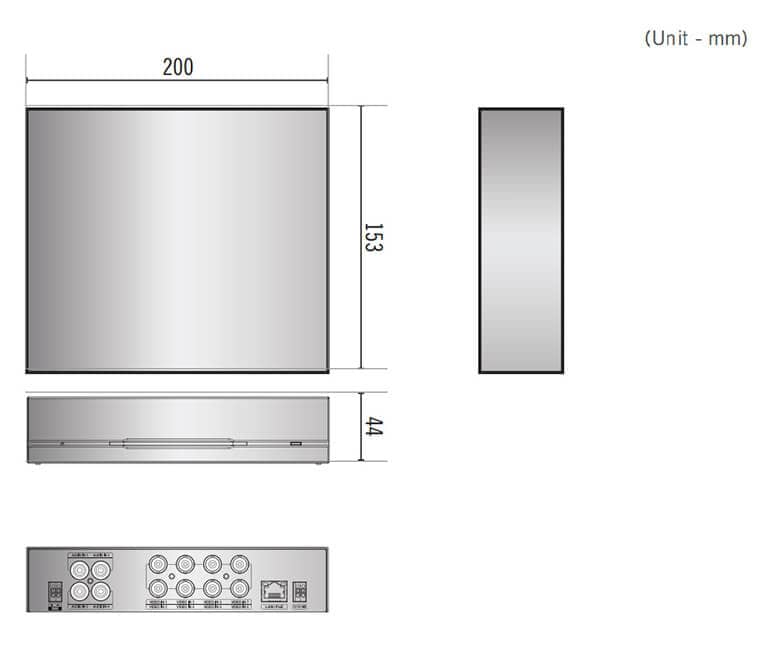

Dimension (W x H x D)200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Unit Weight0.84kg (1.85lb)
Operation Temperature0°C to 40°C (32℉ ~ 104℉)
PoE(class)Yes(IEEE 802.3af Class 3)
Power source12VDC, PoE
Power Consumption10W
ApprovalsFCC, CE
