DC-D4213WRX

Full HD IR Vandal-Resistant Dome Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm/4.0mm)
  • micro SD/SDHC/SDXC
  • Two-way audio
  • Alarm in / out
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30m/98.4 ft(4ea) (f=2.8mm) / 30m/98.4 ft(4ea) (f=4.0mm))
  • 3-axis mechanical design for installation
  • Supports ONVIF
Video
Image Sensor1/2.8
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeFixed-focal
Focal Lengthf=2.8mm /4.0mm
ApertureF2.0 (f=2.8mm) / F2.15 (f=4.0mm)
Iris ControlFixed Iris
Angular Field of View113.7°(H), 61.5°(V), 134.5°(D) (f=2.8mm)
87°(H), 44°(V), 106°(D) (f=4.0mm)
Pan/Tilt/Rotate RangePan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109°
Min. IlluminationCOLOR : 0.1 lux @ F2..0
B/W : 0 lux (IR LED ON)
S/N RatioMore than 45dB
Dynamic Range120dB
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)30m/98.4 ft(4ea) (f=2.8mm) / 30m/98.4 ft(4ea) (f=4.0mm)
Image SettingExposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight CompensationOn / Off
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fogOn / Off
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG,
Intelligent CodecSupported
Video Compression LevelBasic, Standard, High, Very High
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera Protocol DirectIP, ONVIF Profile S
Max. Frame Rate30ips : 1920 x 1080(WDR)
Supports Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session BufferYes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1 / 1
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
MaterialMetal
Operating Temperature-20°C ~ +55°C (-4°F ~ +131°F), Starting up at above 0°C (32°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 2)
Power ConsumptionPoE, (IEEE 802.3af Class 2) 4.8W
ApprovalFCC, CE, KC

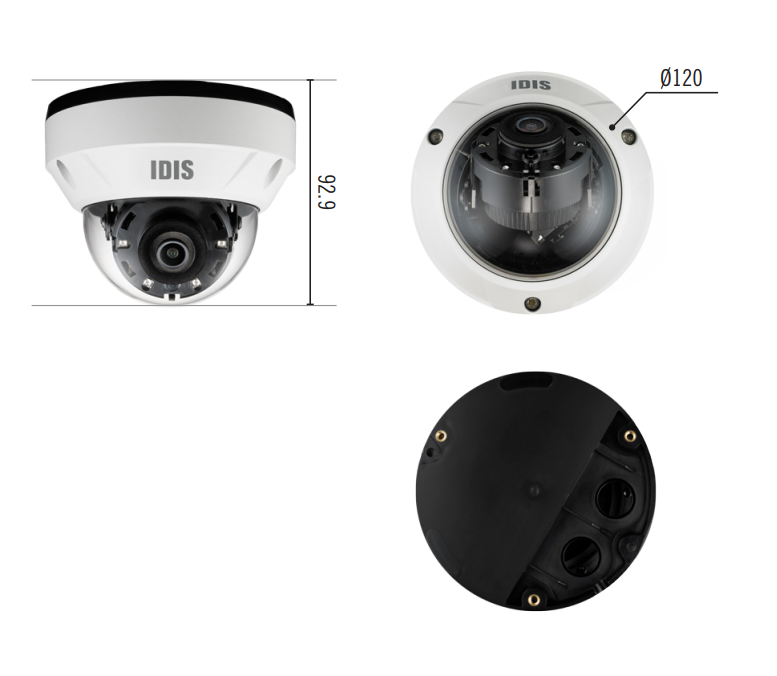

Mechanical
Dimensions (Ø x H)Ø120 x 92.9mm
Weight0.46kg(1.01lb)
Installation environment Accessory configuration

Wall

JUNCTION BOX
Model:DA-JB4700

or

MOUNT ADAPTER
Model:DA-MA4300

+

WALL MOUNT
Model:DA-WM2050

Celling

JUNCTION BOX
Model:DA-JB4700

or

MOUNT ADAPTER
Model:DA-MA4300

+

CEILING MOUNT
Model:DA-CM2050

Pole

MOUNT ADAPTER
Model:DA-MA4300

+

WALL MOUNT
Model:DA-WM2050

+

Pole Mount
Model:DA-LM2000

or

JUNCTION BOX
Model:DA-JB4700

+

Pole Mount
Model:DA-LM2000

or

JUNCTION BOX
Model:DA-JB4600

+

Pole Mount
Model:DA-LM2000

Corner

MOUNT ADAPTER
Model: DA-MA4300

+

WALL MOUNT
Model: DA-WM2050

+

Corner Mount
Model: DA-RM2000

or

JUNCTION BOX
Model: DA-JB4700

+

Corner Mount
Model: DA-RM2000

or

JUNCTION BOX
Model: DA-JB4600

+

Corner Mount
Model: DA-RM2000
