DC-T4517WRX 4.3mm

H.265 5MP Bullet Camera
Easy installation with DirectIP NVR H.265 and Intelligent Codec Affodable 5MP High Resolution
PoE (IEEE 802.3af Class 3) IR LED (20 m / 65.6 ft (2 ea)) Fixed-focal lens
True wide dynamic range (WDR) Day and night (ICR) Supports ONVIF
SPECIFICATIONS
Video
Image Sensor 1/2.8" CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length 4.3mm
Aperture F1.6
Iris Control Fixed Iris
Angular Field of View 4:3 mode : 80º(H) 56.7º(V) 106.9º(D) 16:9 mode : 80º(H) 41.1º(V) 95.4º(D)
Min. Illumination COLOR : 0.15 lux @ F1.6 B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 20 m / 65.6 ft (2 ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation BLC
Mirroring / Pivot Horizontal / Vertical / Pivot
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.265 - CBR / VBR, H.264 - CBR / VBR
Audio Compression -
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR)
Supported Resolution 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Alarm and Event
Trigger Event Motion Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP66
Operating Temperature -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source PoE IEEE 802.3af (Class 3)
Power Consumption PoE, IEEE 802.3af (Class 3), 6.5W
Approval FCC, CE, KC
Mechanical
Dimensions 70mm X 65mm X 197.5mm (2.76" X 2.56" X 7.78")
Weight 0.4kg (0.88lb)
PRODUCT IMAGE

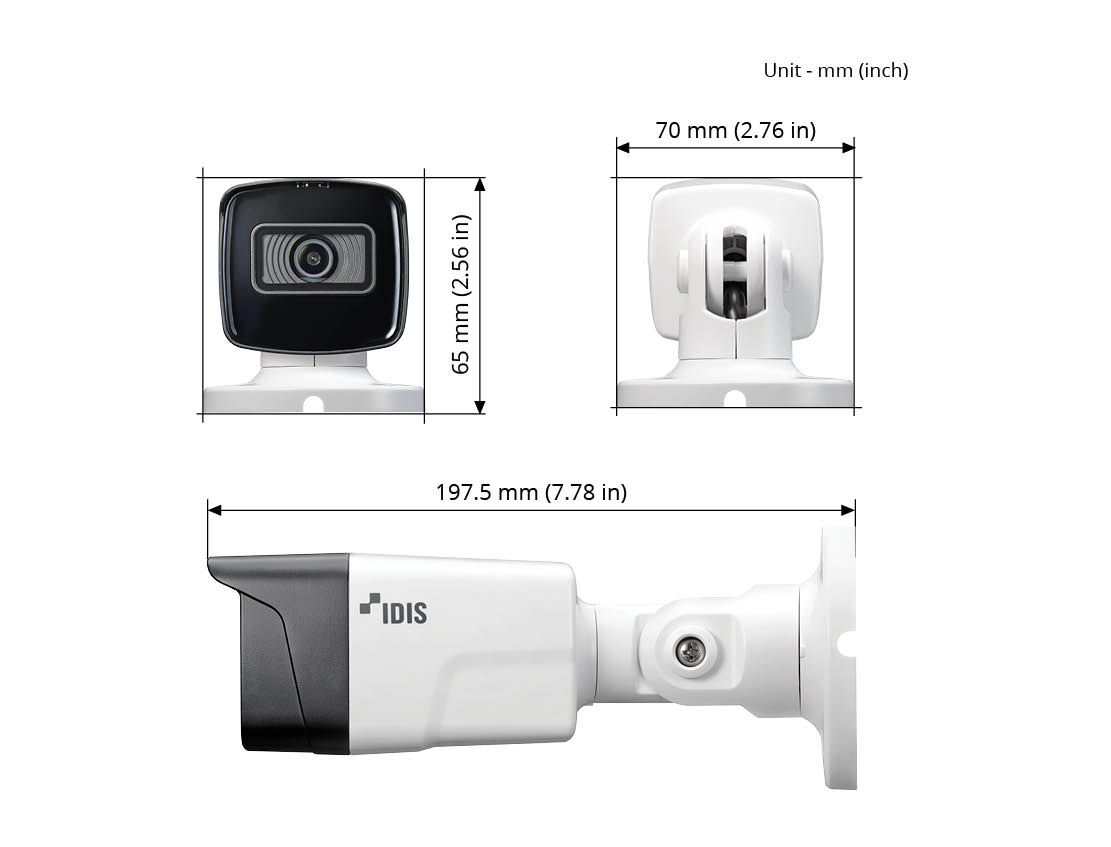

DIMENSIONS
ACCESSORIES (OPTIONAL)

DA-LM2000

Pole Mount

DA-JB2400

Junction Box

DA-RM2000

Corner Mount

Accessory configuration by installation environment

product

Installation environment

Accessory configuration

DC-T4517WRX 4.3mm

Pole

Pole Mount
Model: DA-LM2000
+
Junction Box
Model: DA-JB2400

Corner

Corner Mount
Model:DA-RM2000
+
Junction Box
Model:DA-JB2400
