TC-D5531RXPDirectCX 5MP IR Dome Camera |
 |
| ㆍ | 5M resolution | ㆍ | Vari-focal Lens (f=3.0mm ~ 13.5mm) | ㆍ | Day and night (ICR) |
| ㆍ | True wide dynamic range (WDR) | ㆍ | Motion Detection | ㆍ | De-fog |
| ㆍ | HLC | ㆍ | Coaxial OSD Control |
SPECIFICATIONS
| Video | ||
| Imager Sensor | 1/2.8" CMOS Sensor | |
| Effective pixels | 2616 x 1964 | |
| Total pixels | ||
| Max. Resolution | 2592 x 1944 | |
| Scanning Mode | Progressive Scan | |
| Frame Rate | TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP |
|
| Lens Type | Motorized Vari-focal | |
| Focal Length | f = 3.0mm ~ 13.5mm | |
| Aperture | F 1.4 - 3.2 | |
| IRIS Control | DC IRIS | |
| Angular Field of View | Wide : 91°(H) 66°(V) 120°(D) Tele : 31°(H) 23°(V) 38°(D) | |
| Pan/Tilt Range | Pan: -175° ~ 175°, Tilt: 0° ~ 67°, Rotate: -177° ~ 177° | |
| Min. illumination | COLOR : 0.13 Lux @ F1.4 B/W : 0 Lux (IR LED ON) |
|
| S/N Ratio | More than 50dB | |
| Electronic Shutter Speed | AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER | |
| Day/Night | YES(ICR) | |
| IR DISTANCE (LEDs) | 30m / 98.4 ft(4ea) | |
| Video Out | 1 HD BNC (Signal Switchable) | |
| Function | ||
| AGC | 0 ~ 10 Level Adjustable | |
| Brightness | 0 ~ 20 Level Adjustable | |
| Sens-UP | OFF / x2 ~ x32 | |
| WDR(Wide Dynamic Range) | OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Availbale |
|
| Backlight Compensation(BLC) | OFF/ON | |
| HLC | 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY) | |
| ACE(D-WDR/ATR-EX) | OFF / LOW / MIDDLE / HIGH | |
| Motion Detection | OFF/ON (4 Zone) | |
| Privacy Masking | OFF/ON (24 Zone) BOX:16 POLYGON:8 | |
| Day & Night | Color/B&W/EXTERN | |
| Smart -IR(IR OPTIMIZER) | 0~20 Level Adjustable | |
| White Balance | AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K) | |
| Digital Noise Reduction | OFF/LOW/MIDDLE/HIGH | |
| Mirror | MIRROR,FLIP | |
| D-ZOOM(EZOOM) | x1 ~ x16 | |
| Sharpness | 0~10 Level Adjustable | |
| De-fog | OFF/ON | |
| GAMMA Correction | r = 0.45 ~ 0.75 | |
| Lens Shading(LSC) | OFF / ON(0 ~ 100% Level Adjustable) | |
| Language | ENG / CHN / CHN(S) / JPN / KOR | |
| Menu Control | OSD button, TVI / AHD coaxial protocol | |
| Environmental | ||
| Storage Temperature | -20℃ ~ +60℃ (-4℉ ~ +140℉) (Humidity : 0% ~ 95%) |
|
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) (Humidity : 0% ~ 90%) |
|
| Electrical | ||
| Power Source | PoC | |
| Power Consumption | 7.4W | |
| Mechanical | ||
| Dimensions Ø x H | Ø122mm x 103.4mm (4.8" x 4.07") | |

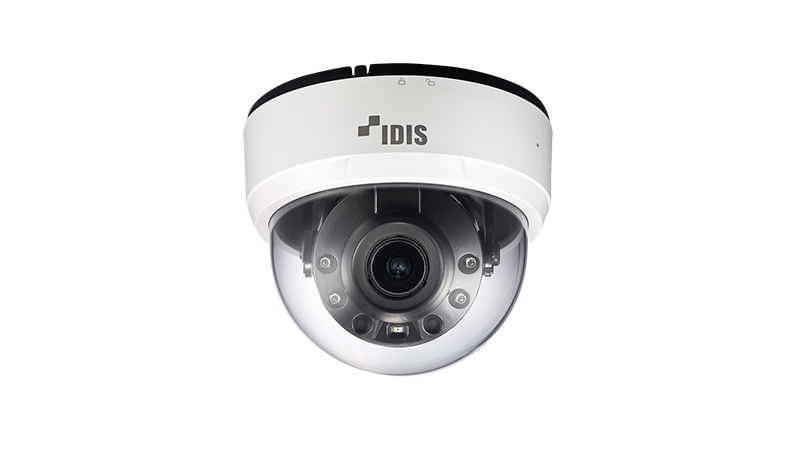

PRODUCT IMAGE

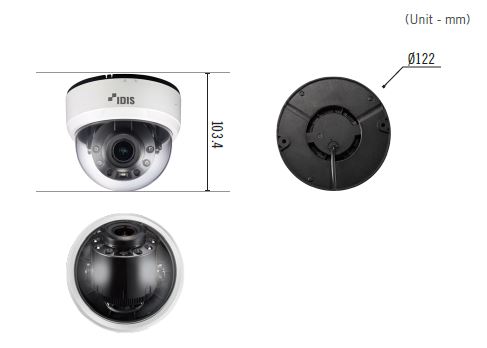

DIMENSIONS
